Exploration: Dynamics CRM Client Scripting - Xrm.Utility.lookupObjects

March 19, 2021 · 3 min read · updated Mar 10, 2024

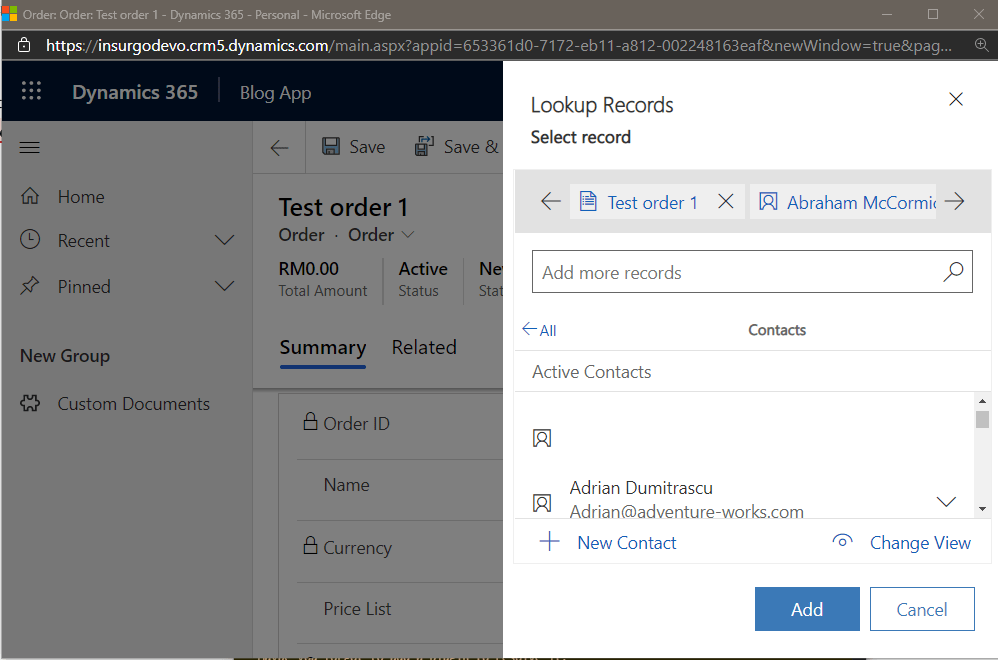

Do you know that in ***Xrm.Utility***object now has a nice function called lookupObjects? When we call this function, it will help us open a nice dialog that lets us choose (single or multiple) records and return to us an array of the selected data. We can pass lots of combinations of parameters to make the dialog more focused on the business needs.

This is the list of supported parameters that we can pass:

Lookup records dialog

No	Parameter	Description	Required
1	allowMultiSelect	The boolean value (true/false) that will let user to select multiple/single record(s).	No
2	defaultEntityType	Default entity type (logical name) when dialog show-up for the first time.	No
3	defaultViewId	Default view id when dialog show-up for the first time (related to parameter #2).	No
4	disableMru	Boolean value to enable/disable recent records.	No
5	entityTypes	An array of entity logical names will be shown in the dialog.	Yes
6	filters	An array of the object (filterXml + entityLogicalName) for default filtering each of the record types.	No
7	searchText	Default string for searching	No
8	showBarcodeScanner	Indicates whether the lookup control should show the barcode scanner in mobile clients.	No
9	viewIds	An array of string guid for the enabled views.	No

Supported parameters to invoke Xrm.Utility.lookupObjects

This is a sample of how we call the function:

var lookupOptions =
{
    defaultEntityType: "account",
    entityTypes: ["account", "salesorder", "new_customdocument"],
    allowMultiSelect: false,
    defaultViewId: "0D5D377B-5E7C-47B5-BAB1-A5CB8B4AC10",
    viewIds: ["0D5D377B-5E7C-47B5-BAB1-A5CB8B4AC10", "00000000-0000-0000-00AA-000010001003"],
    searchText: "Temmy",
    filters: [{ filterXml: "<filter type='or'><condition attribute='name' operator='like' value='A%' /></filter>", entityLogicalName: "account" }]
};
Xrm.Utility.lookupObjects(lookupOptions)
    .then(success => console.log(success), error => console.log(error));

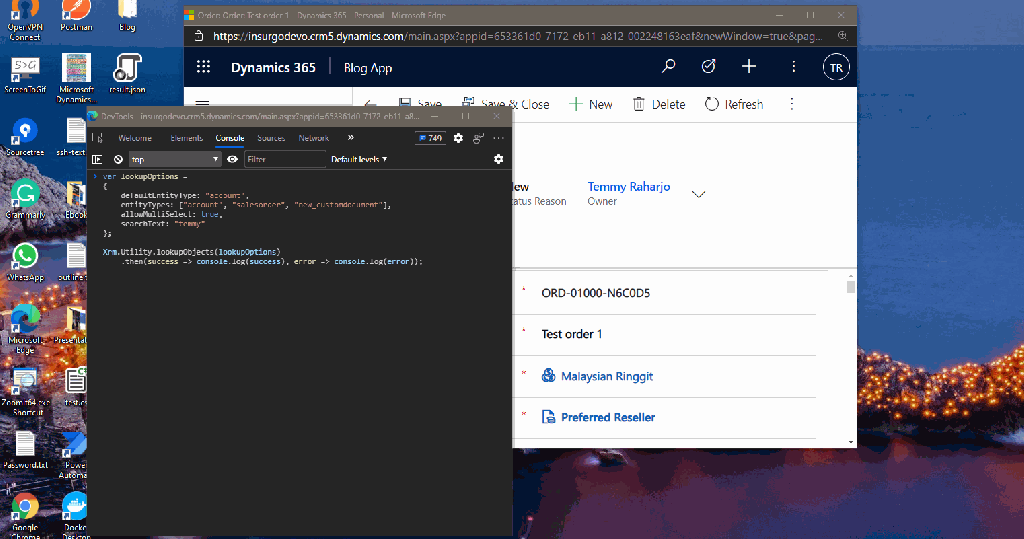

Demonstration:

Demonstration of how to invoke + return the result

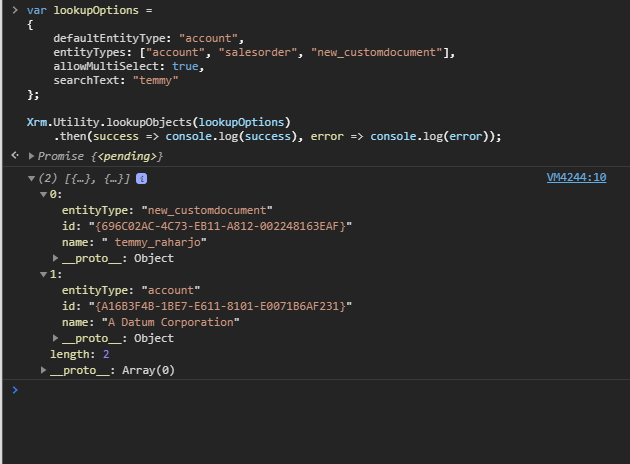

Here is the screenshot of the result after we click the Add button:

An array of entity

Summary

If you ever needed a multi-entity lookup scenario that does not require actual lookup (maybe just JSON text / 2 string attribute for logicalName and id). This API (Xrm.Utility.lookupObjects) will save you a lot of time and open a lot of capabilities ahead. I can think of making a PCF Component to show a single/set of records using this API behind it without the need to make complex data table relations behind it.

What do you think?
